Domains & Multi-tenancy

A Domain is a tenant in MACHHUB — an isolated workspace with its own users, groups, Unified Namespace, collections, and settings. Every request runs inside a domain, and a single MACHHUB Platform instance can host many of them.

The default admin domain

Every install bootstraps one domain on first start: domains:machhub_admin (display name MACHHUB Administrator). It is a system domain and owns the first user. A second system domain (domains:node_red) is also created for Node-RED.

If a request does not specify a domain, MACHHUB falls back to domains:machhub_admin.

See First login & bootstrap for how the admin domain and its first superuser are created.

Selecting the active tenant: the Domain header

Clients choose which tenant to operate in with the Domain request header. The value is the domain’s record ID (e.g. domains:machhub_admin). MACHHUB reads this header early, before authentication and authorization, and pins the rest of the request to that tenant.

GET /machhub/production/all HTTP/1.1
Host: edge.example.com
Authorization: Bearer <jwt>
Domain: domains:machhub_admin

Note

The Domain header is not authentication — it only selects the workspace. The JWT or API key still determines who you are, and your permissions still decide what you may do. See Authentication and Authorization.

Domain types

A domain’s type field tells MACHHUB how it is used:

Type	Purpose
application	An application-type domain that backs a user-developed Application (the most common type).
system	A reserved, platform-managed domain (e.g. domains:machhub_admin).

Each domain carries its identity and membership: an ID (e.g. domains:machhub_admin), a display name, a type, an optional description, the owner (the user who owns it), its members, and the groups defined in it.

The record ID is derived from the name — spaces become underscores and the string is lower-cased, then prefixed with the domains table (so “My Plant” becomes domains:my_plant).

Data isolation: name-prefixed tables

Tenants are kept apart at the storage layer. Data-plane tables (collections, the UNS, the Historian) are name-prefixed with the domain’s name (the part after domains:):

<domain>.<name>

So a production collection in the domains:myapp domain lives in a table named myapp.production, while the same-named collection in another domain is a completely separate table. This keeps one tenant’s records, tags, and history from colliding with another’s.

flowchart TB
  subgraph EDGE["MACHHUB Platform (one instance)"]
    direction LR
    subgraph D1["domains:myapp (application)"]
      C1["myapp.production"]
      U1["UNS + tags"]
    end
    subgraph D2["domains:line_a (application)"]
      C2["line_a.production"]
      U2["UNS + tags"]
    end
  end
  Req["Request\nDomain: domains:myapp"] --> D1

Note

You can use the built-in admin domain for your own data, but it’s not recommended — create an Application domain so your records, tags, and history stay isolated.

Applications

An Application is a user-developed application — your own deployed app, with its own runtime that you can start, stop, and reach on a port (the console shows each one’s status, e.g. Running: 8080).

Today each Application is backed by an application-type domain (you can even add domains from the Applications view), so the two are closely linked. But they are distinct concepts — an Application is your deployed app, not the domain itself — and full separation of the two is planned.

Application vs. Domain

A Domain is a tenant/workspace that scopes data, users, and groups. An Application is the app you build and run on top of one. They overlap today but are being separated.

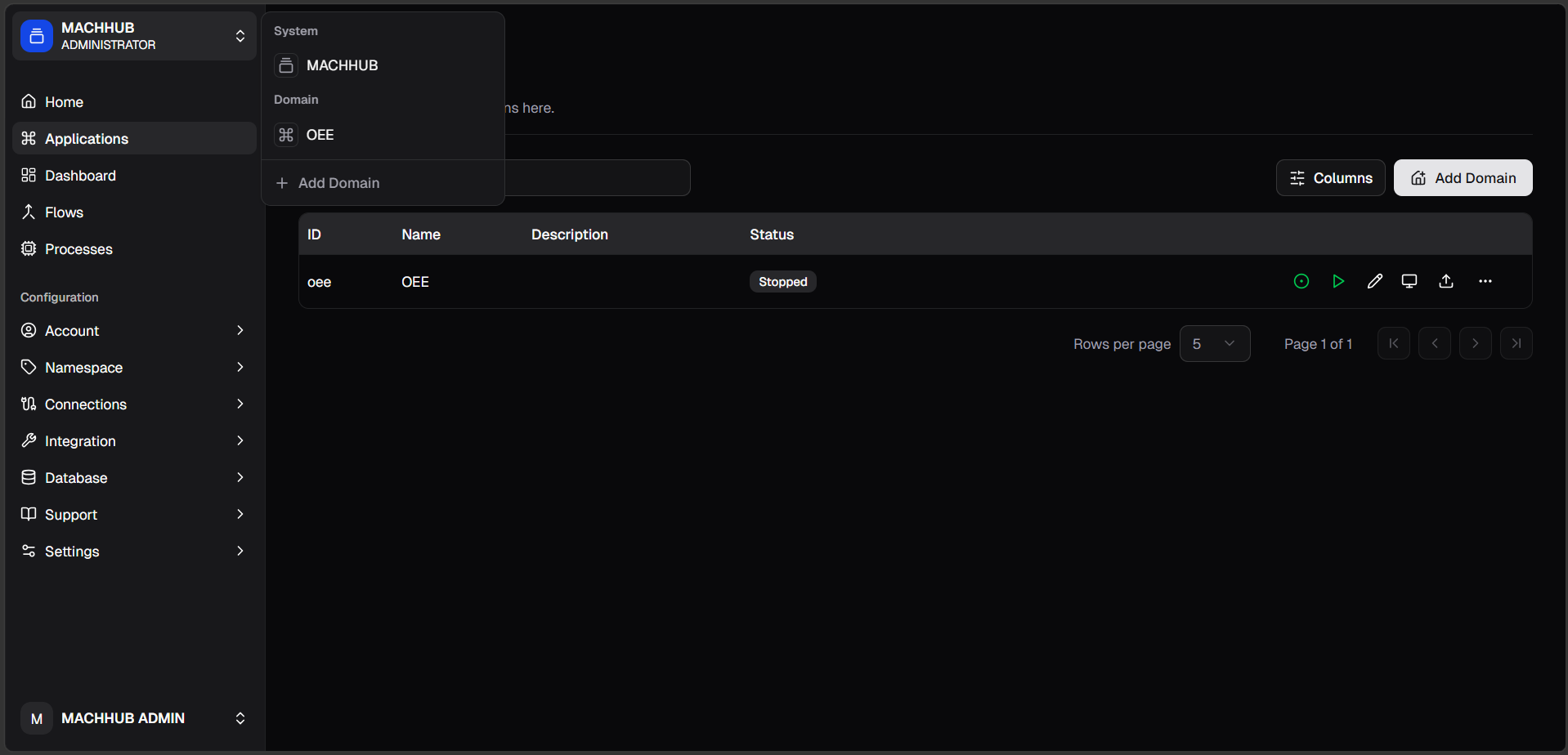

The Applications list and the domain switcher.

Where domains show up

• Groups belong to a domain — a group’s domain_id scopes its permissions to that tenant.
• Collections and the Unified Namespace are created per domain. See Collections and Unified Namespace.
• The Domain header chooses which of these you read and write on each request.

Continue with the Unified Namespace, or see how permissions are scoped per domain in Authorization.
